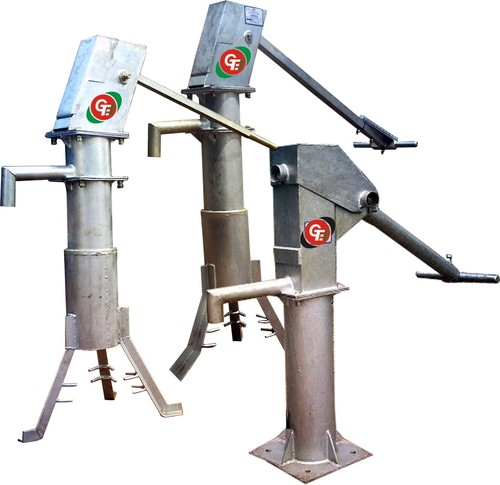

Hand Pumps

Hand Pumps
Hand Pumps
Product Code : 01
Product Description

We are highly reckoned in this domain as a reliable manufacturer and exporter of Hand Pumps. Our offered rang of these pumps is made by using state-of-art technologies and superior quality raw materials that we source from the certified vendors of the industry. Hand Pumps offered by us are widely used for extracting ground level water. To suffice the needs of our precious patrons, we offer these pumps in varying designs, capacities and specifications.

Features:

Sturdy & strong construction

Easy to operate

High Corrosion resistance

Flawless durable service life





 Further Details:

India Mark - II hand pump is divided into four main assemblies

Head Assembly

Pump Head Assembly (above ground mechanism) consists of Head with Inspection cover, Third plate, Handle, Water chamber and stand.

Cylinder Assembly

Cast Iron Body painted outside and lined from inside with seamless Brass liner at 63.5mm I.D., Gun-metal valve components and Nitrile rubber components. Discharge capacity is 15 liters @ 40 strokes per min.

Connecting Rod

12mm dia mild steel electro galvanized, in three meter lengths with hexagonal coupling of both the ends.

Riser Pipe (Drop Pipe)

32mm N.B., G.I. Medium pipe in three meters length with a socket at one end.

Installation

Simple Installation of India Mark-II Hand pump, when installed properly, gives very long uninterrupted service. For step installation procedure and other details, please refer to our installation and Maintenance Manual.

Salient Features of INDIA MARK - II Pump

  • Suitable for bore well installation with static water levels upto 45 mtrs.

  • The entire above ground components are fabricated out of steel sections

  • The pump Body is hot-dipped galvanized

  • Pre-greased sealed Ball Bearings add to the ease of operation and elimination of greasing during use.

  • The Spout design ensures collection of water in any type pf vessel normally used.

  • Pedestal Design ensures the bore hole is sealed to prevent water source contamination.

  • Cylinder with highly polished brass liner ensures long life of Nitrile Rubber Pump Bucket.

  • The Rubber parts in the cylinder are nontoxic and hence they course no health hazards.

  • All internal parts of the cylinder are made of Gunmetal to ensure long life.

  • These pumps can be easily adopted for Shallow Well, Windmill and Motonised operations with minor modifications.

  • India Mark - II pump works on the positive displacement principle, hence the discharge remains constant irrespective of the depth of bore.
