Inwell Drilling Rigs

Inwell Drilling Rigs
Inwell Drilling Rigs
Product Code : inwell-100-2
Product Description

On account of our prolific expertise and skills, we are counted amongst the most trustworthy manufacturers and exporters of Inwell Drilling Rigs. Our offered range of drilling rigs is made by our adroit professionals using the high grade quality raw materials and latest machines at our state-of-art production unit in compliance with the industrial quality norms. Inwell Drilling Rigs offered by us are widely used in rock formation for water well drilling applications.

Features:

Easy to maintain

High end performance

Simple & compact design





 Further Details:

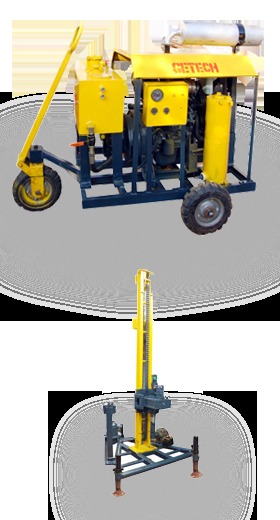

These are special type of Rigs which can be also run by Diesel.  Thanks to its high accessibility and reliability at afford cost in its class. The INWELL100 rig’s flexibility means it will be five piece construction (Mast, Tripod, Drill head, Feed gearbox and Power pack) and air compressor will be mounted on separate trolley or truck

Optional: Skid mounting

Key features:

  • The rig can be customize as per customer requirement All the actuators are operated by proportional control valves

Key specification:

  • Drill rod handling 5 feet (1.5meter)
  • Drilling depth up to 330 feet (100 meters)
  • Drilling diameter 4.5 inch (114mm) -5 inch (127mm)
  • Pull up force 2500 kgf-3000 kgf
  • Drill head torque 80 kg.m
  • Air compressor 450 cfm/150 psi

Optional: Trolley mounted mud pump driven by diesel engine through mechanical drive for mud rotary drilling.
