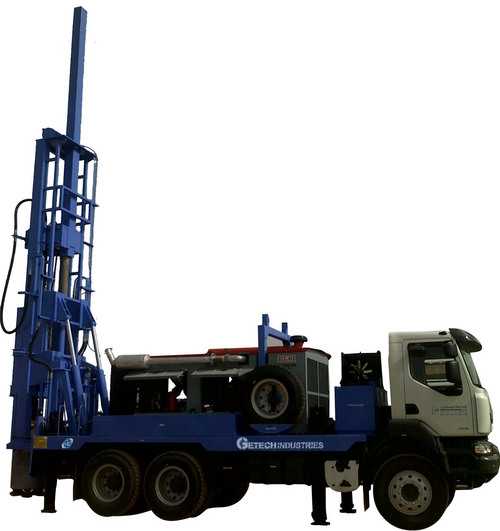

Piling Drilling Rigs

Piling Drilling Rigs
Piling Drilling Rigs
Product Code : 05
Product Description

In the view of our prosperous experience and knowledge in this domain, we are renowned as a prominent manufacturer and exporter of Piling Drilling Rigs. We manufacture these drilling rigs by making use of premium quality steel and advanced machines under the supervision of our adroit and experienced workforce. Piling Drilling Rigs offered by us are widely used for heavy duty drilling applications especially in rocky areas. We offer a wide range of these drilling rigs varying in sizes, capacities and specifications to meet with the needs of our precious patrons.

Features:

Sturdy design

Longer service life

Excellent performance




Technical Specifications

  • Drill hole of Maximum Diameter: 1016mm (24" to 40") and Maximum Depth: 5 Meters
  • Mast Has Overall Length of 5000 mm
  • Rotary Head of Maximum, Speed: 0-100 Rpm and Maximum Torque: 3000 kg-m
  • Feed System has Pull Up capacity: 15000 kgf and Pull Down capacity: 5800 Kgf
  • Prime Mover has engine of 260 ps @ 2100 rpm
  • Stabilizer has Cylinder bore Diameter: 125mm and Stroke: 800 mm
  • Breakout Wrench has cylinder bore Diameter: 100 mm and Stroke: 300mm.
General
GPR5-42 Model, skid mounted Hydraulically Operated Top drive Drilling Rig, Designed to handle Air Drilling application. This Rig is capable of Drilling in different formations such as Medium to Hard Rock by DTH method upto a depth of 16 ft. Under favorable Drilling Conditions. The following are the detailed specifications

Capacity

DTH Drilling:

  • Drill hole Diameter: 42 (1066) Inches (mm)
  • Max. Drilling Depth: 16 (5) Feet. (Mt.)
  • Drill rod Diameter: 8 (203) Inches (mm)
  • Drill rod Length: 6 (2.0) Feet (Mt.)

Under favorable Drilling Conditions

Mast

Sturdy structural Mast of electrically welded construction, main members made out of heavy duty structural steel material reinforced with suitable cross members, So that it is strong enough to withstand the high drilling loads.

  • Mast length: 5000 mm
  • Raising & Lowering: With Hydraulic cylinder
  • Rotary Head travel: 3200 mm

Rotary Head

Heavy duty Hydraulic Driven Top drive Rotation head having infinitely variable speed (0 to 20 RPM) will be provided. This Unit travels on the Mast and is of sturdy construction to absorb sudden shock loads generally encountered during Drilling Operations.

  • Max. Speed (spindle rpm) : 0 - 100 Rpm
  • Max. Torque : 3000 Kg m

Feed System

Feed system is provided with adequate travel for handling drill pipes & Casing pipes upto 6 Mt. long. A suitable hydraulic cylinder actuates the feed and hoist.

The feed system has the following capabilities:

  • Feed cylinder size: 125 x 90 x 3500 mm
  • Pull back/up Capacity: 19000 Kgf
  • Pull down Capacity: 10000 Kgf
  • Pull back/up Speed: 30 Mt/min,
  • Feed Cylinder Qty.: 1 No.

The feed system will be incorporated with Hold back arrangement to control and limit weight on bit, rapid and slow feed arrangement to sui9t the variable ground conditions.
